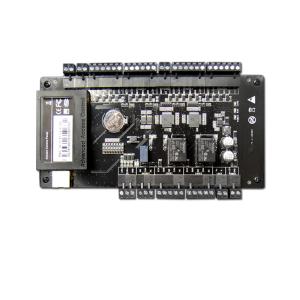

Two Doors Access Control Board with TCP/IP and Wiegand Signal Access Control Panel for 2 doors(C3-200)

Name: Two Doors Access Control Board with TCPIP and Wiegand Signal Access Control Panel for 2 doorsC3200
Brand: VANSHUI
Price: 1 USD

Wholesale Two Doors Access Control Board with TCP/IP and Wiegand Signal Access Control Panel for 2 doors(C3-200) from china suppliers

Brand Name : VANSHUI

Model Number : C3-200

Certification : CE,FCC

Place of Origin : SHANGHAI,CHINA

MOQ : 1pcs

Price : Negotiation

Payment Terms : T/T, Western Union,Paypal

Supply Ability : 10000Pcs/month

Packaging Details : Unit packing: 22*20*10cm Real weight: 0.5Kg Volume weight: 2Kg

Delivery Time : 5-8 working days

Product Name : 2 Door Access Control Panel

CPU : 32bit MIPS CPU

RAM : 32M bits

Flash Memory : 256M bits

User : 30,000

Event Buffer : 100,000

Power / Current : DC12V/3A(metal box)

Reader Port : 4ea (26bit Wiegand, 8bit Burst for PIN)

Input Port : 6ea (Exit Button*2, Door Sensor*2, Aux*2)

Operating Temperature : 0°to +55°C

Contact Now

PRODUCT DESCRIPTION

Two Doors Access Control Board with TCP/IP and Wiegand Signal Access Control Panel for 2 doors(C3-200)

Model C3-200 is Multi-door access control panel. It is one of the most rugged and reliable controllerson the market, with a multitude of built-in features. It can store up to 30,000 cardholders, canconnect RFID reader to the panel via Wiegand. It also supports real-time monitoring, communicatevia RS-485 configuration or Ethernet TCP/IP networks. Metal power box of the acces control panelis optional.

FEATURES

1/ There are over-current protection, over-voltage protection, reversal protection for the power supply and all the input and output terminal.
  2/ Multiple hardware protection measure.
  3/ C3-200 can be integrated with other security systems such as CCTV, fire alarm, BAS(building automation system) and other systems to configure total security system.
  4/ Supports different wiegand reader (wiegand 26-40 bit).
  5/ The controller support different wiegand format and can connect to different reader, including ID card reader and MF card reader.
  6/ Input/Output Ports to Control Doors
  7/ Connect with variety of sensors, alarms, exit buttons, electric lock and other devices.
  8/ Variety of Communication Function
  9/ Using either serial or TCP/IP communication, it provides reliable network system
  10/ Normal open after first punch card can be setup
  11/ Real-time Monitoring of Door status
  12/ Using the management software, it allows real-time monitoring and control of door opening and closing of the whole system.
  13/ Interlock function
  14/ Link different doors with special logic that one door is Open, others should be closed.
  15/ Multi-card operation
  16/ This function is used to manage visitors or to manage some special high secure place. The doors are opened when appointed
  number registered cards are read together.
  17/ Anti-Passback, Duress Mode, SDK available
  18/ The system integrator can use the SDK to integrate the hardware into their existing access control software system or to develop a new software.

SPECIFICATION

Model Name	C3-200
CPU	32bit MIPS CPU
RAM	32M bits
Flash Memory	256M bits
User	30,000
Event Buffer	100,000
Power / Current	DC12V/3A(metal box)
Reader Port	4ea (26bit Wiegand, 8bit Burst for PIN)
Communication	RS485, TCP/IP
Baud Rate	38,400bps (Recommended) / 9600bps, 19,200bps, 57,600bps (selectable)
Input Port	6ea (Exit Button#1, Exit Button#2, Door Sensor#1, Door Sensor#2, Aux#1, Aux#2)
Output Port	2ea (2 FORM-C Relay Output, SPDT 5A@36VDC/8A@30VAC) 2ea (2 Aux FORM-C Relay Output, SPDT 2A@30VDC)
LED Indicator	LED indication for communication, power, status and valid card read
Operating Temperature	0°to +55°C
Operating Humidity	10% to 80% relative humidity non-condensing
Dimension (L*W)mm	160(W)106(H)(single board ) 345(W)275(H)*70(D) (with power supply and metal box)
Software	Access3.5
